Question 1

What are slide gate plates and how do they control molten steel flow?

Accepted Answer

Slide gate plates are precision-machined refractory plates installed in ladle bottoms and tundishes to control molten steel flow through throttling or on-off operation. The system consists of upper fixed plate attached to ladle nozzle, middle sliding plate moved horizontally by hydraulic/pneumatic actuator, and lower fixed plate directing steel to tundish or mold. When plate bores align, steel flows; offset position throttles flow; complete misalignment stops flow. Composition: Al₂O₃-C plates (70-90% alumina, 3-8% carbon) for general steel grades, Al₂O₃-Mg-C plates (added MgO for slag resistance), ZrO₂-C plates (10-30% zirconia, 8-15% carbon) for ultra-clean steel and high-erosion applications. Critical properties include high erosion resistance (C/RN ratio <5), excellent thermal shock resistance (>10 cycles 1100-1550°C), non-wetting characteristics preventing steel sticking, dimensional stability maintaining bore alignment, and low porosity (<18%) preventing steel infiltration. Typical service life: 3-15 heats depending on steel grade, casting time, and throughput tonnage. Advantages over stopper rod systems: precise flow control enabling variable casting speeds, no immersion in molten steel reducing contamination risk, easier automation integration, and lower refractory consumption per ton of steel.

Question 2

What is the difference between alumina-carbon and zirconia-carbon slide gate plates?

Accepted Answer

Alumina-carbon (Al₂O₃-C) and zirconia-carbon (ZrO₂-C) slide gate plates serve different steel grades and operating conditions. Alumina-carbon plates contain 70-90% Al₂O₃, 3-8% carbon (graphite), with MgO additions (Al₂O₃-Mg-C) for enhanced slag resistance. Service life: 5-10 heats for carbon steel, 3-5 heats for stainless/alloy steel. Cost: baseline pricing. Applications: carbon steel, low-alloy steel, general stainless steel grades, and moderate erosion conditions. Advantages: lower cost, adequate performance for most applications, easier machining. Zirconia-carbon plates contain 10-30% ZrO₂, 60-75% Al₂O₃, 8-15% carbon (higher carbon for severe conditions). Service life: 8-15 heats for ultra-clean steel, improved performance in high-flow applications. Cost: 2-4x alumina-carbon plates. Applications: ultra-clean steel (bearing, tire cord, spring steel), high-alloy stainless steel, long sequence continuous casting (>4 hours), high steel throughput (>200 tons/hour). Advantages: superior erosion resistance (zirconia hardness), excellent thermal shock resistance, outstanding non-wetting properties preventing steel sticking. Selection criteria: for standard carbon/low-alloy steel with normal casting times (<3 hours), alumina-carbon provides adequate performance at lower cost; for ultra-clean steel grades, extended casting sequences, or high-erosion environments, zirconia-carbon justifies premium cost through extended service life and improved steel quality (reduced inclusions from refractory erosion).

Question 3

What are tundish nozzles and submerged entry nozzles (SEN)?

Accepted Answer

Tundish nozzles and submerged entry nozzles control molten steel flow from tundish to continuous casting mold, critically affecting steel cleanliness and casting stability. Tundish nozzles mount in tundish bottom, directing steel downward into mold or launder. Types: well nozzles (short, simple design for open pouring), metering nozzles (precision bore for flow control), and impact pad nozzles (flat bottom preventing mold refractory erosion). Composition: alumina-carbon (85-90% Al₂O₃, 5-10% C) for standard grades, zirconia-carbon (15-25% ZrO₂) for clean steel. Service life: single heat (1-8 hours) disposable consumables. Submerged entry Nozzles (SEN) extend from tundish into mold, submerging steel entry point below mold slag layer. Benefits: prevents reoxidation by avoiding air exposure, reduces inclusion pickup from slag entrainment, minimizes turbulence and meniscus fluctuations, enables controlled flow pattern (bilateral discharge through side ports), and improves surface quality. SEN designs: straight bore (simple), bifurcated/trifurcated (multiple discharge ports), and bore designs optimized for slab/bloom/billet casting. Composition: alumina-carbon or zirconia-carbon with proprietary coatings. Critical properties: thermal shock resistance (rapid immersion into 1550°C steel), erosion resistance at high flow rates (150-300 kg/min), clogging resistance (alumina buildup prevention), and dimensional stability. Service life: 1-3 heats depending on steel grade (ultra-clean steel causes faster alumina buildup), casting time, and flow rates. Quality impact: proper SEN design and material selection reduces inclusion content by 30-50%, improves internal quality (reduced center segregation), and enhances surface quality (fewer defects).

Question 4

How do stopper rods and monoblock stoppers work in ladles?

Accepted Answer

Stopper rods and monoblock stoppers control molten steel flow from ladles through mechanical sealing against ladle nozzle seats, providing on-off and throttling control. Stopper rod systems consist of stopper head (refractory tip contacting nozzle seat), metal rod connecting head to actuator, and lifting mechanism (hydraulic/pneumatic) raising/lowering stopper. Operation: lowered position seats stopper head in nozzle bore, stopping flow; raised position opens passage for steel discharge; intermediate positions throttle flow. Stopper head composition: alumina-graphite (Al₂O₃-C: 70-85% alumina, 8-15% graphite) for general applications, alumina-zirconia-carbon (AZC: added ZrO₂ for erosion resistance), and magnesia-carbon (MgO-C) for basic slag environments. Monoblock stoppers combine stopper head and upper rod section in single piece, eliminating mechanical joint. Advantages: no joint failure risk, better thermal shock resistance, reduced steel contamination, simpler installation. Disadvantages: complete replacement required for head wear (vs replaceable head on articulated rods). Service life: stopper heads 8-20 heats depending on steel grade, casting time, nozzle erosion, thermal cycling. Wear mechanisms include chemical erosion from molten steel and slag attack, mechanical erosion from steel flow turbulence, thermal shock from repeated immersion, and oxidation of carbon component. Critical properties: high erosion resistance, excellent thermal shock resistance (withstand 20+ immersion cycles), dimensional stability maintaining seal integrity, non-wetting preventing steel adhesion. Modern trend favors slide gate systems over stopper rods due to better flow control, lower maintenance, and reduced contamination risk, but stopper rods remain common in smaller capacity ladles (<150 tons) and as backup systems.

Question 5

What are ladle well blocks and porous plugs used for?

Accepted Answer

Ladle well blocks and porous plugs enable ladle bottom argon/nitrogen injection for steel stirring, degassing, and inclusion flotation. Ladle well blocks are large refractory blocks (typically 300-600mm diameter, 200-400mm height) installed in ladle bottom with central bore accommodating porous plug or purging element. Design:座 (seat) section interfacing with ladle bottom permanent lining, well section housing porous plug, and often integrated nozzle connection. Composition: high-alumina castables or precast shapes (60-85% Al₂O₃), magnesia-based materials for basic environments, with low porosity outer sections and high porosity inner purging zones. Service life: multiple campaigns (50-200 heats) before replacement. Porous plugs are permeable refractory inserts enabling gas injection through thousands of micro-pores (50-200 microns), creating fine bubble dispersion for efficient stirring. Types: directional porous plugs (gas flows upward only, preventing steel infiltration), slit-type plugs (machined slots for gas passage), and combination plug-well block units. Composition: alumina-magnesia-carbon, zirconia-alumina, with controlled porosity (10-25%) and pore size distribution. Permeability: 1-20 NL/min/bar gas flow rate. Service life: 15-50 heats depending on gas injection intensity, steel cleanliness requirements, maintenance. Applications and benefits: ladle metallurgy furnace (LMF) stirring for temperature and composition homogenization, steel-slag interface stirring promoting inclusion flotation and removal, degassing treatments (vacuum or non-vacuum), alloy dissolution acceleration, inclusion shape control through calcium treatment, and temperature drop compensation (3-5°C/minute stirring). Gas injection rates: 50-500 NL/min depending on ladle size (20-350 ton capacity) and treatment objectives. Well-maintained purging systems reduce inclusion content by 40-70%, improve cleanliness for critical applications (bearing steel, tire cord), and enable precise alloy control. Maintenance critical: dried/preheated before service (1000-1200°C), protected from direct steel impingement during tapping, and cleared of blockages between heats through high-pressure gas purging.

Question 6

What quality standards and testing apply to steel industry refractories?

Accepted Answer

Steel industry refractories undergo rigorous testing per ASTM C20 (apparent porosity, bulk density, water absorption critical for non-wetting), ASTM C133 (cold crushing strength), ASTM C704 (abrasion resistance crucial for erosion performance), ASTM C863 (erosion resistance of refractories by molten metal flow), ISO 11900 series (determination of metal penetration resistance), and ISO 10081-3 (classification of dense shaped refractory products - special products). Specific steel industry tests include corrosion cup test (rotary slag/metal erosion at 1600-1700°C measuring material loss), induction furnace corrosion test (thermal cycling with steel and slag), finger erosion test (flowing steel erosion measurement), thermal shock resistance (water quench or air quench cycling 1100-1550°C), and non-wetting angle measurement (sessile drop method). Physical properties verification includes dimensional tolerance checks (slide gate plates: ±0.1mm bore diameter, ±0.05mm flatness critical for sealing), surface finish specifications (Ra <3.2 microns for sealing surfaces), density verification (>2.85 g/cm³ for dense products), porosity control (<18% apparent, <3% closed for quality products). Carbon content verification through LOI (loss on ignition) confirming graphite levels since carbon provides non-wetting properties but must be controlled to prevent oxidation. Chemical composition analysis via XRF confirming Al₂O₃, ZrO₂, MgO, carbon percentages matching specifications. Quality certifications include ISO 9001:2015 (quality management systems mandatory for steel plant suppliers), ISO 14001:2015 (environmental management), and customer-specific approvals (major steel producers require product qualification testing). Traceability requirements include batch number identification on each component, material certificates (MTCs) with chemical and physical test data, and dimensional inspection reports. Performance tracking includes service life documentation (heats per component), post-mortem analysis identifying failure modes (erosion patterns, chemical attack, thermal shock cracking), and continuous improvement programs. Major steel producers maintain approved vendor lists requiring annual audits, statistical process control (SPC) for critical dimensions, and zero-defect programs since refractory failure causes costly production interruptions.

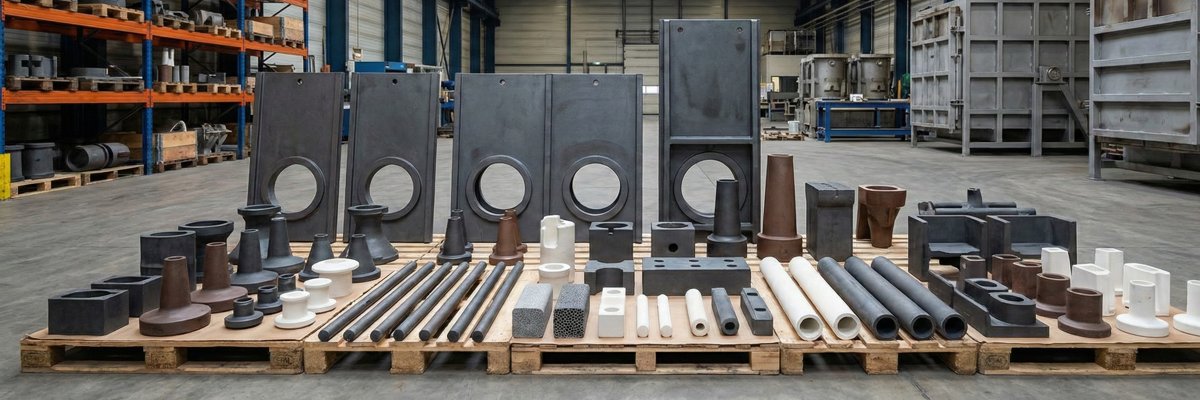

Steel Industry Refractories

Mission-Critical Steelmaking Refractories

Quick Specs

Specialized Steel Industry Products

Slide Gate Plates

Tundish Nozzles & SEN

Stopper Rods & Monoblock

Ladle Well Blocks & Porous Plugs

Long Nozzles & Shrouds

Tundish Furniture

Steel Industry Applications

Integrated Steel Plants

EAF & Mini-Mills

Continuous Casting

Secondary Metallurgy

Key Features & Benefits

Superior Erosion Resistance

Thermal Shock Stability

Non-Wetting Properties

Dimensional Precision

Controlled Flow Performance

Quality Consistency
