What is the maximum temperature rating for ceramic fiber products?

Ceramic fiber products are rated for continuous use at 1000-1600°C depending on fiber composition. Standard aluminosilicate fiber (44-52% Al₂O₃, 48-56% SiO₂) handles continuous temperatures of 1000-1260°C with short excursions to 1400°C. High-alumina fiber (70-72% Al₂O₃) operates continuously at 1400-1450°C with peaks to 1600°C. Zirconia-enhanced fiber (15-25% ZrO₂) provides maximum continuous temperature of 1430-1600°C for severe thermal cycling applications. Bio-soluble alkaline earth silicate (AES) fiber offers safer handling with 1000-1200°C continuous rating. Temperature limits depend on atmosphere composition, mechanical stress, and exposure duration. Oxidizing atmospheres provide full rated temperature, while reducing atmospheres may require derating by 50-100°C.

How much energy can be saved by using ceramic fiber insulation instead of dense refractories?

Ceramic fiber insulation provides 25-40% fuel savings compared to traditional dense refractory brick linings through multiple mechanisms. Low thermal mass (90% lighter, density 64-350 kg/m³ vs 2000-3000 kg/m³ for bricks) reduces heat storage, requiring less energy to heat the lining itself during startup and temperature changes. Ultra-low thermal conductivity (0.08-0.20 W/mK at 600°C vs 0.8-2.5 W/mK for insulating fire bricks) dramatically reduces heat loss through furnace walls, saving continuous energy during operation. Rapid heating and cooling (thermal response 5-10x faster) minimizes warm-up time and enables faster production cycles. Thinner lining profiles (50-150mm ceramic fiber vs 230-460mm brick) increase internal furnace volume while reducing shell temperature to 50-80°C, improving workplace safety and reducing structural steel cooling requirements. Actual savings depend on furnace type, operating cycle, and temperature profile.

What is the difference between ceramic fiber blankets and ceramic fiber boards?

Ceramic fiber blankets are flexible, needled products made from spun ceramic fibers with density of 64-128 kg/m³, supplied in rolls of 25-50mm thickness and 610-1220mm width. They provide excellent flexibility for lining irregular surfaces, thermal expansion joints, and pipe insulation, with easy cutting and fitting using scissors or knives. Blankets compress during installation, then spring back to fill gaps, creating seamless insulation. Ceramic fiber boards are rigid products made by combining ceramic fibers with inorganic binders, vacuum-formed or compression-molded to densities of 200-350 kg/m³ in sheets 25-100mm thick. Boards offer superior dimensional stability, resistance to gas flow erosion, structural support for self-supporting linings, and machineability for precision shapes. Blankets excel in flexibility and ease of installation, while boards provide rigidity, erosion resistance, and structural capability. Many furnace designs combine both: rigid board hot face with flexible blanket backup insulation.

How are ceramic fiber modules installed in furnaces?

Ceramic fiber modules are pre-fabricated, compressed, and folded blanket sections installed using anchor systems attached to furnace shells or backup structures. Installation involves welding or bolting stainless steel anchors (studs, hex mesh, or plate anchors) to the furnace shell in predetermined patterns, typically 200-300mm spacing. Compressed modules are impaled onto anchors, with each module containing multiple layers of folded blanket. As modules are released, they spring back to designed thickness, creating interlocking, seamless lining with no gaps. Module installation is 70-80% faster than brick laying, requires no mortar or curing time, and creates monolithic lining without joints. Modules can be installed from inside (hot face) or outside (cold face) depending on furnace design. Standard module sizes range from 300x300mm to 450x450mm face dimensions with compressed thickness of 75-125mm expanding to 150-300mm installed thickness. Proper anchor spacing and module compression ratio (typically 4:1 to 6:1) ensure complete coverage without gaps or excessive compression.

Are ceramic fiber products safe to handle and what precautions are needed?

Traditional aluminosilicate ceramic fibers (RCF - Refractory Ceramic Fiber) are classified as possible human carcinogens (IARC Group 2B) based on animal studies, requiring careful handling with proper PPE including dust masks (N95 or P100 respirators), safety glasses, gloves, and long-sleeved protective clothing. Work areas should have adequate ventilation, and dry sweeping should be avoided in favor of HEPA vacuum cleaning or wet methods. Modern bio-soluble alkaline earth silicate (AES) fibers and low-biopersistent alternatives dissolve in biological fluids, reducing health concerns and classified as not classifiable as carcinogenic (IARC Group 3). These safer alternatives cost 20-40% more but offer similar thermal performance with significantly improved safety profiles. During installation, minimize airborne dust through slow handling, pre-wetting products where feasible, and ensuring proper ventilation. Post-installation, ceramic fibers become bound within the structure and present minimal exposure risk during normal operation. Proper handling training, workplace exposure monitoring, and medical surveillance programs should follow OSHA regulations and manufacturer MSDS guidelines.

What quality standards and testing apply to ceramic fiber products?

Ceramic fiber products are tested and certified according to ASTM C892 (Standard Specification for High-Temperature Fiber Blanket Thermal Insulation), ASTM C1728 (Standard Test Method for Density of Thin Fiber Blankets), ASTM C182 (Standard Test Method for Thermal Conductivity), ISO 10635 (Ceramic Fiber Products - Specifications), EN 1094 series (Insulating refractory products - Calcium silicate), and ASTM E2109 (Standard Test Methods for Shrinkage). Physical properties testing includes density measurement (kg/m³), thermal conductivity at multiple temperatures (ASTM C201, hot wire or heat flow meter methods), linear shrinkage after firing (ASTM C356), tensile strength (ASTM C1273), shot content (unfiberized particles, typically less than 15%), and chemical composition analysis (XRF or wet chemistry). Safety testing includes bio-persistence testing (dissolution in simulated lung fluid per ECR40 protocol) and fiber size distribution. Quality certifications include ISO 9001:2015 (quality management), REACH compliance (European chemical regulation), and product-specific fire safety ratings where applicable. Manufacturers provide technical data sheets with temperature-thermal conductivity curves, installation guidelines, and chemical composition certificates.

Ceramic Fiber Products | Blankets Boards Modules

Name: Ceramic Fiber Products
Brand: RefractorySource
SKU: RS-CFP-001
Availability: InStock

PRODUCT OVERVIEW

Revolutionary Lightweight High-Temperature Insulation

Ceramic fiber products represent a revolutionary advancement in high-temperature insulation technology, offering ultra-low thermal conductivity (0.08-0.20 W/mK at 600°C), minimal heat storage (90% weight reduction vs dense refractories), and rapid installation (70% faster than brick). These manufactured aluminosilicate fibers provide exceptional thermal performance from 1000-1600°C while dramatically reducing energy consumption, furnace structural requirements, and installation time compared to traditional dense refractory systems.

The transformation from heavy, thermally massive brick linings (2000-3000 kg/m³, 230-460mm thick) to lightweight ceramic fiber systems (64-350 kg/m³, 50-150mm thick) delivers immediate economic benefits: 25-40% fuel savings from reduced heat loss and thermal mass, faster heating/cooling cycles enabling higher production throughput, lower structural steel requirements due to reduced lining weight, and decreased foundation costs. The low thermal conductivity prevents heat loss through furnace walls while the minimal heat storage accelerates thermal response during startup, shutdown, and temperature changes.

Our comprehensive range includes flexible needled blankets (64-128 kg/m³, 25-50mm thickness) for versatile lining applications, rigid vacuum-formed boards (200-350 kg/m³, 25-100mm) providing structural support and erosion resistance, pre-compressed folded modules enabling rapid anchor-system installation, thin flexible papers (1-6mm) for gaskets and electrical insulation, braided rope and woven tape (Ø6-100mm) for door seals and expansion joints, and woven textiles for high-temperature flexible protection applications.

90% Weight Reduction

Dramatically lighter than dense refractories, reducing structural requirements.

Ultra-Low Thermal Conductivity

Exceptional insulation preventing heat loss and reducing energy costs.

Rapid Installation

70% faster than brick with module systems, minimal downtime.

25-40% Energy Savings

Proven fuel consumption reduction in continuous operations.

Quick Specifications

Temperature: 1000-1600°C
Density: 64-350 kg/m³
Thermal Conductivity: 0.08-0.20 W/mK
Al₂O₃ Content: 44-72%
Energy Savings: 25-40%
Weight Reduction: 90%
Installation Speed: 70% faster

Request TDS

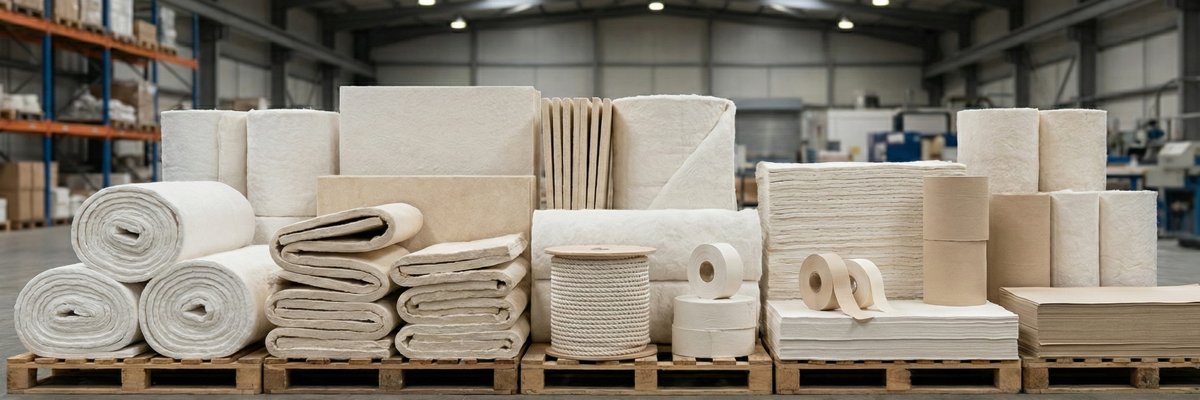

PRODUCT RANGE

Complete Ceramic Fiber Portfolio

Full range of ceramic fiber insulation products for high-temperature thermal management and energy efficiency.

Ceramic Fiber Blankets

Ceramic Fiber Boards

Rigid vacuum-formed or compression-molded boards providing structural support, dimensional stability, and erosion resistance. Excellent for hot face linings, furnace doors, and high-velocity gas applications.

Density: 200-350 kg/m³
Thickness: 25-100mm sheets
Size: 600x900mm, 1000x1220mm
Machineable: Saw, drill, rout

Ceramic Fiber Modules

Pre-fabricated, folded, compressed modules for rapid anchor-system installation. Spring back to full thickness upon release, creating seamless monolithic lining 70-80% faster than bricklaying.

Face Size: 300-450mm square
Compressed: 75-125mm thick
Expanded: 150-300mm installed
Installation: 70% time savings

Ceramic Fiber Papers

Thin, flexible sheets for gaskets, electrical insulation, high-temperature seals, and thermal barriers. Made from short ceramic fibers with organic or inorganic binders.

Thickness: 1-6mm
Width: 1000-1220mm rolls
Density: 200-300 kg/m³
Applications: Gaskets, seals, insulation

Ceramic Fiber Rope & Tape

Braided and twisted ropes, woven tapes for door seals, expansion joints, cable insulation, and packing. Available with stainless steel wire reinforcement for added tensile strength.

Diameter: Ø6-100mm rope
Width: 25-100mm tape
Reinforcement: Optional SS wire
Applications: Seals, joints, packing

Ceramic Fiber Textiles

Woven cloth, sleeving, braided tubing, and custom fabrics for flexible high-temperature protection, welding curtains, expansion joint covers, and personal protective equipment.

Cloth: 0.8-3.2mm thick
Width: 1000-1500mm
Sleeving: Ø10-100mm
Applications: Curtains, covers, sleeves

APPLICATIONS

Industries & Use Cases

Ceramic fiber products serve critical insulation needs across diverse high-temperature industries

Steel & Metallurgy

Ladle covers, tundish linings, annealing furnace hot faces, soaking pit covers, and reheat furnace door seals.

Learn More

Heat Treatment

Car bottom furnaces, batch furnace linings, bell furnaces, and continuous heat treatment lines.

Learn More

Petrochemical

Reformer linings, cracker insulation, heater walls, stack linings, and pipe insulation for high-temperature processes.

Learn More

Power Generation

Boiler insulation, turbine wraps, duct insulation, and backup insulation for power plant equipment.

Learn More

FAQ

Frequently Asked Questions

Common questions about ceramic fiber products and their applications

Ceramic fiber blankets are classified by temperature rating: Standard (1000°C/1832°F), High-Purity (1260°C/2300°F), High-Alumina (1400°C/2552°F), and Polycrystalline (1600°C/2912°F). Higher grades contain more alumina and less silica, providing better thermal stability, lower shrinkage, and improved resistance to thermal shock. Select grades based on your maximum operating temperature plus a 100-150°C safety margin.

Ceramic fiber typically reduces energy consumption by 25-40% compared to traditional dense refractory brick linings. This savings comes from lower thermal mass (faster heat-up/cool-down cycles), superior insulation properties (thermal conductivity 0.03-0.25 W/m·K vs 1.0-2.5 for brick), and reduced heat storage losses. Payback periods of 6-18 months are common for furnace conversions.

Ceramic fiber modules are pre-compressed blanket assemblies with integral metallic anchors for direct attachment to furnace shells. Use modules for: walls and roofs of batch furnaces, continuous furnace linings, areas requiring rapid installation, and applications where blanket layering would be time-consuming. Modules provide consistent compression, faster installation (up to 50% faster than layered blanket), and improved durability against velocity erosion.

Density selection depends on application: 64-96 kg/m³ for backup insulation behind brick, 96-128 kg/m³ for standard hot face applications with low velocity, 128-160 kg/m³ for moderate velocity environments (<15 m/s), and 160-192 kg/m³ for high velocity or erosive conditions. Higher density provides better erosion resistance but slightly higher thermal conductivity. For modules, 160-192 kg/m³ is standard.

All ceramic fiber shipments include: ISO 9001:2015 certification, Technical Data Sheets (TDS) with thermal properties, Material Safety Data Sheets (MSDS), batch test certificates showing fiber chemistry (Al₂O₃, SiO₂ content), shot content analysis, and thermal conductivity data. Third-party testing by SGS, Bureau Veritas, or Intertek available on request. Bio-soluble fiber grades include REACH compliance documentation for EU markets.

Related Products

Complementary insulation and refractory products

Insulation Materials

Calcium silicate boards, microporous insulation, and backup materials for complete thermal systems.

Learn More

Insulating Fire Bricks

Lightweight IFB for backup insulation behind ceramic fiber or as primary hot face in lower temperature zones.

Learn More

Refractory Castables

Low-cement and insulating castables for anchoring systems, floor construction, and transitional zones.

Learn More

Coatings & Repair

Rigidizer coatings, ceramic fiber cements, and repair materials for fiber lining maintenance.

Learn More
