PRECAST REFRACTORIES

Precast Refractory Products

Premium factory-manufactured precast refractory components engineered for 50-75% faster installation, superior dimensional accuracy, and consistent quality, serving steel, glass, cement, and petrochemical industries worldwide.

Temperature Rating 1200-1800°C
Certification ISO 9001:2015
Installation Time 50-75% Faster
Request Quote View Specifications
Precast Refractory Products

Factory-Manufactured Refractory Excellence

Precast refractory products represent the modern evolution in industrial furnace construction and maintenance, combining factory-controlled manufacturing precision with field-proven performance. Unlike traditional cast-in-place methods requiring on-site mixing, casting, and extended curing periods, precast components arrive at your facility ready for immediate installation, dramatically reducing downtime and ensuring consistent quality across every piece.

Our comprehensive range includes precast blocks for furnace linings manufactured from high-alumina castables with 40-90% Al₂O₃ content reaching service temperatures of 1600-1800°C, checker bricks in multiple geometries (grid, basket, cross-wall, honeycomb) optimized for regenerative heat exchangers in glass and steel applications, precast roof tiles and modules in insulating grades providing superior thermal efficiency for furnace crowns, precision burner blocks with machined openings ensuring proper flame geometry, anchor systems including both ceramic anchor bricks and metallic anchors for secure lining attachment, and custom precast shapes manufactured to client-specific CAD models for unique furnace configurations.

Manufacturing under ISO 9001:2015 certified processes ensures every component meets exact specifications through electronic batching systems controlling raw material proportions within 0.1% accuracy, vibration casting or pressure casting methods eliminating voids and ensuring density uniformity, multi-stage curing protocols in temperature and humidity controlled chambers optimizing strength development, precision machining and grinding achieving ±2mm dimensional tolerances, and comprehensive testing including bulk density per ASTM C20, cold crushing strength per ASTM C133, and refractoriness under load when specified. This factory environment produces components with properties impossible to achieve through field casting, including complex internal geometries, superior surface finish reducing slag penetration, consistent performance across production batches, and thorough documentation for quality traceability.

50-75% Time Savings

Dramatically reduce installation time and furnace downtime compared to cast-in-place methods

Consistent Quality

Factory-controlled manufacturing eliminates field variables for uniform performance

±2mm Precision

Tight dimensional tolerances ensure perfect fit and reduce installation challenges

Custom Shapes Available

CAD/3D modeling capabilities for complex geometries and unique requirements

PRODUCT RANGE

Comprehensive Precast Product Range

Factory-manufactured components for every industrial furnace application, from massive structural blocks to precision burner components

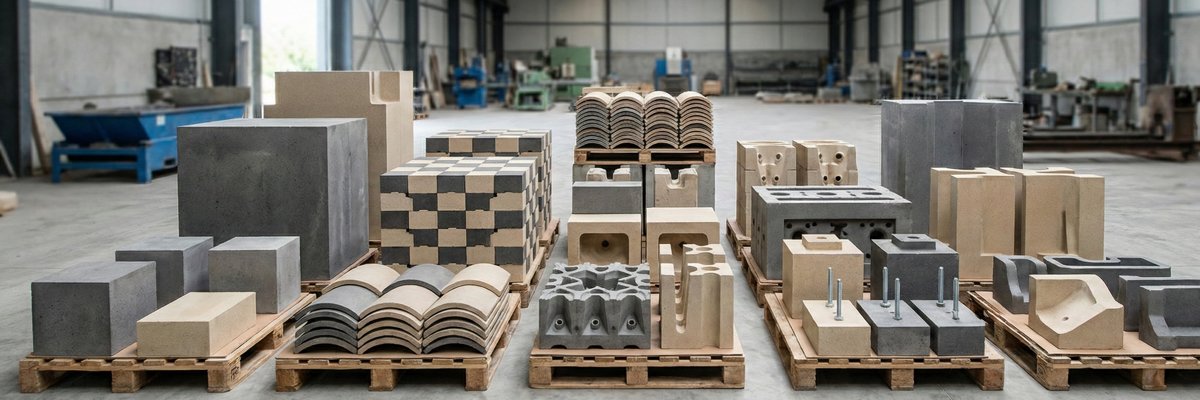

Precast Refractory Products Range

Dense Precast Blocks

High-alumina precast blocks for furnace walls, roofs, and floors offering exceptional structural strength and thermal performance. Manufactured from 40-90% Al₂O₃ castables with vibration casting ensuring maximum density and minimal porosity for extended service life.

  • Temperature: 1600-1800°C
  • Al₂O₃: 40-90%, customizable
  • Bulk Density: 2.4-3.0 g/cm³
  • CCS: 50-100 MPa
  • Applications: Furnace linings, steel ladles, glass tanks

Checker Bricks for Regenerators

High Demand

Specialized precast checker bricks in grid, basket, cross-wall, and honeycomb patterns optimized for regenerative heat exchangers. Precision-cast geometries maximize heat transfer surface area while maintaining structural integrity under thermal cycling and mechanical loads.

  • Temperature: 1500-1700°C
  • Patterns: Grid, basket, cross-wall, honeycomb
  • Bulk Density: 2.2-2.6 g/cm³
  • CCS: 40-80 MPa
  • Applications: Glass regenerators, steel plant heat recovery

Precast Roof Tiles & Modules

Interlocking precast roof components manufactured from insulating castables providing superior thermal efficiency for furnace and kiln crowns. Modular design enables rapid installation and easy replacement of individual tiles without disturbing surrounding structure.

  • Temperature: 1200-1500°C
  • Insulating grade (LWC/MLWC)
  • Bulk Density: 0.8-1.4 g/cm³
  • CCS: 5-20 MPa
  • Applications: Furnace roofs, kiln crowns, arch sections

Burner Blocks & Nozzles

Precision-engineered burner blocks with CNC-machined openings ensuring exact flame geometry and optimal combustion efficiency. High-alumina composition withstands direct flame impingement and thermal shock from cyclic burner operation.

  • Temperature: 1500-1700°C
  • High-Alumina 60-80%
  • Bulk Density: 2.4-2.7 g/cm³
  • CCS: 60-90 MPa
  • Applications: All furnace types, custom burner configurations

Anchor Bricks & Systems

Ceramic anchor bricks and metallic anchor systems for secure lining attachment in vertical walls and overhead applications. Y-anchors, V-anchors, hex-mesh anchors, and custom configurations available in heat-resistant alloys (310SS, 330SS, Inconel) or refractory ceramics.

  • Temperature: 1400-1700°C
  • Ceramic or metallic construction
  • Bulk Density: 2.0-2.6 g/cm³
  • Load capacity: High bearing strength
  • Applications: Vertical walls, roof suspensions, sidewall anchoring

Custom Precast Shapes

Made to Order

Bespoke precast components manufactured to client specifications using CAD/3D modeling and CNC machining. Complex geometries, intricate internal passages, precision tolerances, and unique material compositions available with prototype development support and engineering consultation.

  • Temperature: Application-specific
  • CAD/3D modeling support
  • Any composition available
  • Prototype development
  • Applications: Unique furnace designs, special requirements

Technical Specifications

Comprehensive property data for precast refractory products across all material grades and applications

Property Unit Dense HA 40-50% Dense HA 60-70% Dense HA 80-90% Insulating LWC Insulating MLWC
Al₂O₃ Content % 40-50 60-70 80-90 40-55 50-65
Maximum Service Temperature °C 1400-1550 1600-1700 1750-1800 1200-1300 1300-1400
Bulk Density g/cm³ 2.2-2.5 2.5-2.8 2.8-3.0 0.6-1.0 1.0-1.4
Apparent Porosity % 18-22 15-19 14-17 60-70 50-60
Cold Crushing Strength (CCS) MPa 40-60 60-80 80-100 5-10 10-15
Modulus of Rupture (MOR) MPa 6-10 8-12 10-15 1.5-3.0 2.5-4.0
Permanent Linear Change (1500°C, 3h) % -0.2 to +0.5 -0.2 to +0.3 -0.1 to +0.2 -0.5 to +1.0 -0.4 to +0.8
Thermal Conductivity (1000°C) W/m·K 1.5-2.0 1.8-2.3 2.0-2.5 0.25-0.35 0.35-0.50
Thermal Shock Resistance (1100°C water quench) cycles 15-25 20-30 25-35 30-50 40-60
Testing Standards: All properties tested according to ASTM C20 (apparent porosity, bulk density), ASTM C133 (cold crushing strength), ASTM C583 (modulus of rupture), ASTM C179 (permanent linear change), and ASTM C202 (thermal conductivity). Complete test certificates provided with every shipment.
Manufacturing: Precision vibration casting or pressure casting in custom molds. Multi-stage curing (24-72 hours) in temperature and humidity controlled chambers. CNC machining for critical dimensions. ±2mm dimensional tolerance standard, tighter tolerances available.

Applications & Industries

Precast refractory solutions for diverse high-temperature industrial processes worldwide

Steel & Metallurgy

Ladle sidewall and bottom blocks, tundish linings, furnace roof modules, regenerator checker work, torpedo car linings, and BOF/EAF working linings requiring rapid replacement during scheduled outages.

Glass Manufacturing

Regenerator checker bricks in multiple patterns, forehearth components, superstructure crown blocks, melter sidewall modules, distributor channel blocks, and burner port assemblies for container, flat, and specialty glass production.

Cement & Lime

Rotary kiln hood blocks, preheater tower components, cooler sidewall and floor modules, burner pipe assemblies, kiln riser duct sections, and calciner refractory installations requiring dimensional precision for proper fit.

Petrochemical

Ethylene cracker furnace components, reformer tube supports and hangers, thermal oxidizer linings, FCC reactor cyclone assemblies, hydrogen plant reformer boxes, and coker heater modules requiring complex geometries and precision fit.

Power & Energy

Coal-fired boiler arch and sidewall blocks, CFB boiler cyclone linings, waste heat boiler ducting modules, burner throat assemblies, ash hopper linings, and power plant refractory requiring rapid turnaround during maintenance outages.

Foundry & Casting

Induction furnace linings, cupola stack sections, holding furnace components, launder and spout assemblies, pouring basin blocks, and foundry furnace roof tiles requiring frequent replacement in high-production environments.

Incinerators & Waste

Municipal solid waste incinerator linings, hazardous waste rotary kiln components, medical waste incinerator chambers, secondary combustion chamber blocks, and waste-to-energy boiler refractories requiring chemical resistance and thermal shock performance.

Non-Ferrous Metals

Aluminum reverberatory furnace roofs, copper smelter converter linings, lead blast furnace components, zinc retort furnace blocks, precious metals refining crucibles, and non-ferrous holding furnace assemblies.

Specific Applications by Product Type:

  • Dense Precast Blocks: Blast furnace stacks, ladle sidewalls, tundish working linings, glass tank sidewalls
  • Checker Bricks: Glass regenerator heat recovery, open hearth regenerators, coke oven heating chambers
  • Roof Tiles: Tunnel kiln crowns, shuttle kiln roofs, heat treatment furnace tops, annealing furnace covers
  • Burner Blocks: Rotary kiln burners, boiler wall burners, furnace lance ports, ignition ports
  • Anchor Systems: Vertical wall suspensions, roof module support, sidewall anchoring, overhead lining attachment
  • Custom Shapes: Transition pieces, expansion joints, complex geometries, specialty fittings
  • Modular Systems: Quick-change furnace sections, portable kiln components, rental furnace linings
  • Repair Components: Hot-spot replacement blocks, damaged section modules, emergency spare parts

Key Features & Benefits

Why leading industrial facilities worldwide choose precast refractory products for critical applications

Factory-Controlled Quality

Manufacturing under ISO 9001:2015 certified processes eliminates field variables ensuring every component meets exact specifications. Electronic batching systems control raw material proportions within 0.1% accuracy. Multi-stage curing in temperature and humidity controlled chambers optimizes strength development. Comprehensive testing including bulk density, cold crushing strength, and dimensional inspection guarantees consistent performance. Complete documentation with batch traceability, mill test certificates, and photographic evidence provided for quality assurance and compliance requirements.

Dramatic Time Savings

Reduce installation time by 50-75% compared to cast-in-place methods, minimizing costly production downtime. Components arrive pre-cured and ready for immediate positioning, eliminating mixing, casting, and extended curing periods. Furnace roofs requiring 7-10 days with traditional casting install in 2-3 days with precast tiles. Glass regenerator checker work completed in 1-2 weeks versus 4-6 weeks with conventional methods. Steel ladle relining accomplished in 12-24 hours instead of 48-72 hours, reducing production interruptions and accelerating return to service for maximum furnace availability and production capacity utilization.

Precision Dimensional Accuracy

Achieve ±2mm dimensional tolerances as standard, with tighter tolerances available for critical applications requiring exact fit. Precision molds and CNC machining ensure consistent component dimensions eliminating field fitting issues. Complex shapes with intricate internal passages, precise angles, and tight radius curves impossible with field casting become routine. Perfect component-to-component matching reduces installation time and improves lining integrity. Accurate dimensions minimize joint width variability improving thermal performance and structural stability. Predictable shrinkage characteristics from controlled curing enable precise design calculations for thermal expansion joints and overall lining systems.

Total Cost Optimization

Lower total project costs through reduced labor requirements, shorter shutdown periods, and elimination of field mixing equipment and utilities. Precast installation requires fewer skilled workers with shorter mobilization periods reducing labor expenses. Faster commissioning accelerates production restart lowering opportunity costs from lost production. Minimal material waste with precise quantities and no excess mixing or disposal costs. Predictable project timelines enable better planning and resource allocation. Longer service life from consistent manufacturing quality reduces replacement frequency. Energy savings from superior dimensional stability and optimized joint design throughout furnace operating life deliver continuing economic benefits.

Custom Engineering Capabilities

In-house engineering team provides CAD/3D modeling services for complex custom shapes impossible to achieve through conventional methods. Collaborate with clients from concept through production ensuring optimal design for specific application requirements. Prototype development and testing validate performance before full production commitment. Create intricate internal cooling passages, precise burner openings, interlocking features, and complex transition geometries. Incorporate anchors, inserts, and hardware during casting process. Multiple material zones within single component for graded property requirements. Engineering consultation on lining design, thermal modeling, installation procedures, and maintenance strategies maximizes performance and service life.

Global Export Experience

Extensive experience shipping precast products worldwide with specialized packaging ensuring arrival in perfect condition. Custom wooden crates, palletization, and protective wrapping prevent transit damage. Component identification labeling, orientation marking, and installation sequence numbering simplify field assembly. Complete export documentation including commercial invoices, packing lists, certificates of origin, and quality certificates. Coordination with international freight forwarders for container loading optimization. Installation support available including technical supervision, training, and commissioning assistance. Spare parts programs ensure long-term supply security. Successfully shipped to 30+ countries across six continents serving diverse industrial sectors and applications.

Frequently Asked Questions

Common questions about precast refractory products, manufacturing, installation, and performance

Precast refractory products are factory-manufactured refractory components cast, cured, and finished under controlled conditions before shipment to the installation site. Unlike cast-in-place (monolithic) refractories that are mixed and installed on-site, precast products arrive ready for installation, requiring only positioning and jointing. This factory production ensures consistent quality, precise dimensions (±2mm tolerance), uniform properties across all pieces, and thorough curing before use. Precast products include blocks, checker bricks, roof tiles, burner blocks, and custom shapes manufactured from high-alumina castables, insulating castables, or specialty compositions. The controlled manufacturing environment allows for superior quality control, complex shapes with precise tolerances, multiple curing stages, and comprehensive testing before shipment. Installation is 50-75% faster than cast-in-place methods because components are pre-cured, require minimal site preparation, eliminate mixing and casting time, and can often be installed during shorter shutdown windows. This makes precast products ideal for applications requiring rapid turnaround, dimensional precision, or complex geometries difficult to achieve with field casting.

Precast refractory products offer significant advantages including 50-75% reduction in installation time, consistent factory-controlled quality ensuring uniform properties across all components, precise dimensional accuracy with ±2mm tolerances reducing fitting issues, lower total installation costs through reduced labor and shorter shutdown periods, and immediate commissioning capability since components are pre-cured. Quality advantages include thorough factory testing of every batch, elimination of on-site mixing variables, consistent curing conditions, and comprehensive documentation. Installation benefits include reduced skilled labor requirements, minimal site preparation, cleaner construction environment, easier quality inspection, and ability to work in confined spaces. Economic benefits include predictable project timelines, reduced downtime costs, lower labor expenses, minimal material waste, and faster return to production. Technical advantages include ability to create complex shapes not feasible with in-situ casting, superior surface finish, better thermal cycling performance through controlled curing, and options for custom compositions. Environmental benefits include reduced on-site emissions, lower energy consumption, minimal water usage during installation, and better working conditions for installers.

Available precast products include: 1) Precast Blocks (40-90% Al₂O₃, 1600-1800°C, 2.4-3.0 g/cm³, 50-100 MPa CCS) for furnace walls, roofs, and floors in steel, glass, and petrochemical applications. 2) Checker Bricks in grid, basket, cross-wall, and honeycomb designs (1500-1700°C, 2.2-2.6 g/cm³) for glass furnace and steel plant regenerators providing efficient heat exchange. 3) Precast Roof Tiles and Modules in insulating grades (1200-1500°C, 0.8-1.4 g/cm³, 5-20 MPa CCS) offering interlocking designs for furnace and kiln roofs with excellent thermal insulation. 4) Burner Blocks and Nozzles (1500-1700°C, 2.4-2.7 g/cm³, 60-90 MPa CCS) with precision-machined openings for burner installations in various furnace types. 5) Anchor Systems including ceramic anchor bricks and metallic anchors (1400-1700°C, 2.0-2.6 g/cm³) for secure lining attachment in vertical and overhead applications. 6) Custom Precast Shapes manufactured to client specifications using CAD/3D modeling for unique furnace designs, complex geometries, and special applications requiring specific dimensions or properties.

Installation of precast refractory products is 50-75% faster than traditional cast-in-place methods. For example, a furnace roof that would require 7-10 days for in-situ casting, curing, and drying can be installed with precast components in 2-3 days. A glass regenerator checker work requiring 4-6 weeks with traditional bricks can be completed in 1-2 weeks using precast checkers. Steel ladle lining replacement taking 48-72 hours with casting can be accomplished in 12-24 hours with precast blocks. Installation time depends on project size and complexity, component weight and dimensions, crane and handling equipment availability, and jointing method used. Typical timelines include small repairs (1-2 days for 5-10 precast pieces), medium projects (3-7 days for 50-100 components), and large installations (2-4 weeks for complete furnace lining with 500+ pieces). Time savings result from elimination of mixing time, no curing wait period, faster positioning and jointing, reduced skilled labor needs, and ability to work in parallel on multiple areas. Components arrive pre-cured and ready for immediate heat-up according to manufacturer's schedule, typically allowing furnace commissioning 24-48 hours after final installation.

Precast refractory products are available in multiple material compositions and temperature ratings. High-Alumina Dense Precast (40-50% Al₂O₃) suitable for 1400-1550°C with bulk density 2.2-2.5 g/cm³ and CCS 40-60 MPa for general furnace applications. High-Alumina Dense Precast (60-70% Al₂O₃) rated for 1600-1700°C with density 2.5-2.8 g/cm³ and CCS 60-80 MPa for steel ladles and cement kilns. Ultra High-Alumina Dense (80-90% Al₂O₃) for 1750-1800°C service with density 2.8-3.0 g/cm³ and CCS 80-100 MPa for demanding steel and glass applications. Insulating Precast products in Light-Weight Castable (LWC) grades rated 1200-1300°C with density 0.6-1.0 g/cm³ and CCS 5-10 MPa, Medium-Weight Insulating at 1300-1400°C with density 1.0-1.4 g/cm³ and CCS 10-15 MPa, and Dense Insulating for 1400-1500°C with density 1.4-1.8 g/cm³ and CCS 15-25 MPa. Specialty compositions include silica-based precast for 1650-1700°C in glass applications, magnesia-based for 1700-1800°C in steel converters, and low-cement/ultra-low cement formulations for superior hot strength. All products manufactured according to ASTM C401, C857, C860 standards with complete chemical and physical property documentation.

Comprehensive quality control begins with raw material inspection including chemical analysis of all incoming materials, particle size distribution testing, and moisture content verification. Batch preparation follows strict protocols with electronic batching systems ensuring accurate proportions, homogeneous mixing for uniform distribution, and controlled water addition for optimal casting consistency. Manufacturing process controls include vibration table casting for dense products with vibration frequency and duration monitoring, pressure casting for complex shapes ensuring complete mold filling, temperature and humidity controlled curing rooms, and multi-stage curing protocols (initial set 24 hours, intermediate cure 48-72 hours, final conditioning). Quality testing of finished products includes dimensional inspection verifying ±2mm tolerances, visual inspection for cracks or defects, bulk density testing per ASTM C20, cold crushing strength per ASTM C133, refractoriness under load if specified, and permanent linear change testing. Documentation provided includes mill test certificates with complete chemical analysis and physical properties, batch traceability records, dimensional inspection reports, and photographic evidence of surface quality. Third-party inspection available through SGS, Bureau Veritas, or Intertek with witness testing during production, independent sampling and analysis, and certification of conformance. Products packed with protective wrapping, labeled with identification and orientation marks, and shipped with handling instructions to ensure arrival in perfect condition.
